COMMAND SERIES

SWITCH DISCONNECTOR

160A 8P Y5 BOX (B)

Cod. 590.YA1608B

The COMMAND Series switch disconnector is a box (B) mounted, open type device designed for base mounting on DIN rail or screw fixing. It features a switch size of Y5 and is engineered to handle a rated current of 160A. This robust switch disconnector is equipped with eight poles (8P) and includes a direct handle for ease of operation. It is designed with a late break and early make neutral pole, ensuring enhanced safety and reliability. The COMMAND Series is capable of managing a current (Ie) of 160A in AC23A applications at 415V, providing dependable performance in demanding electrical environments.

Commercial Series

COMMAND Series

Synthetical description

SWITCH DISCONNECTOR

Construction type

Open type

Mounting version

Material

THERMOPLASTIC

Installation temperature

-25°C/+60°C

Type

BOX (B)

Rated current

160A

Poles

Switch size

Rated voltage

690V

Rated insulation voltage (Ui)

690VAC

Rated impulse voltage (Uimp)

8kV

Thermal current (Ithe)

160A

Current (Ie) in AC21A (415V)

160A

Current (Ie) in AC21A (500V)

160A

Current (Ie) in AC21A (690V)

160A

Current (Ie) in AC22A (415V)

160A

Current (Ie) in AC22A (500V)

160A

Current (Ie) in AC22A (690V)

125A

Current (Ie) in AC23A (415V)

160A

Current (Ie) in AC23A (500V)

125A

Current (Ie) in AC23A (690V)

125A

Power AC23A (415V)

75kW

Short-time current

3kA Icw(1s)

Conditional short circuit cur.

50kAeff

Associate fuse - type gG

125A

Terminals - Flexible wires

10-70mm²

Terminals - Rigid wires

10-70mm²

Catalogue notes

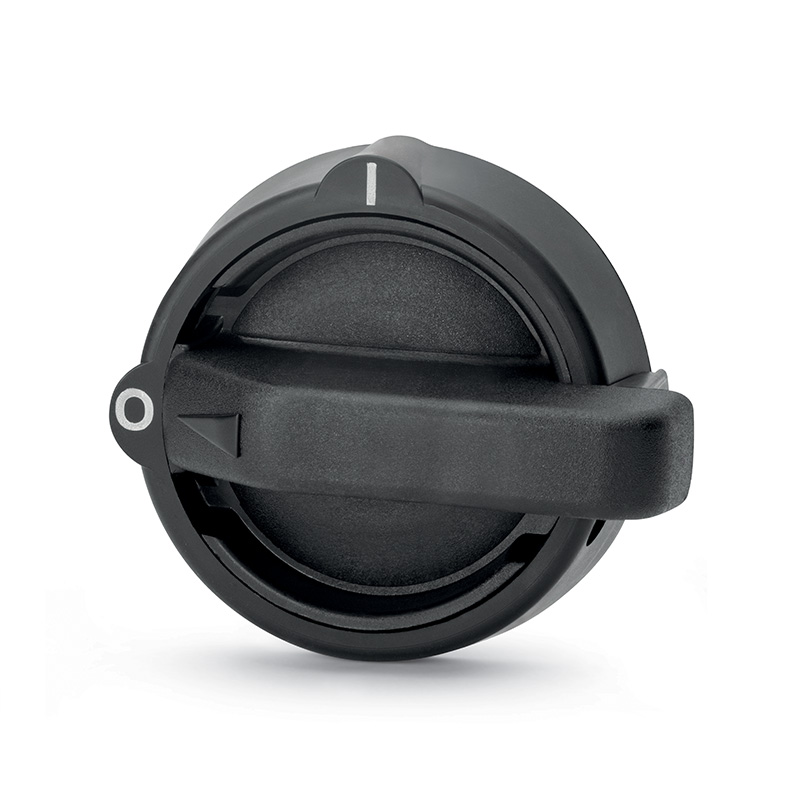

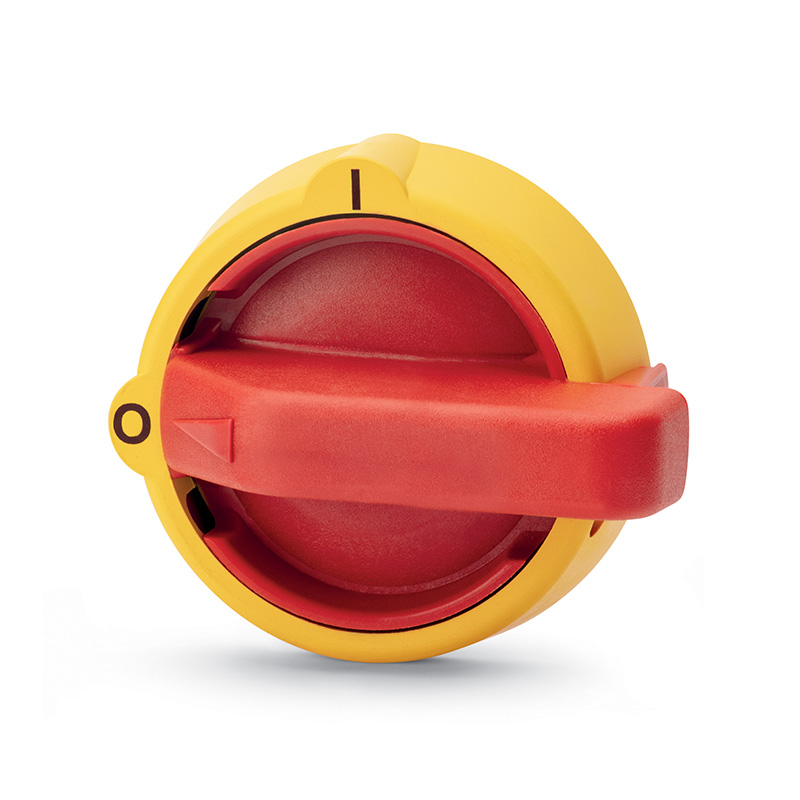

Equipped with direct handle
With late break and early make neutral pole
BOX (B) = Base mounting
DIN rail / screw fixing

Product

EAN code

8001636289021

INTRASTAT code

8536508000

Net weight

0 KG

Minimum Quantity

Packaging

Packaging Box

EAN code

8001636739113

Quantity

Depth

0.0

Width

0.0

Height

0.0

Volume

0.0

EN IEC 60947-1 (2021)	[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
EN IEC 60947-3 (2021)	[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
DIRECTIVE LOW VOLTAGE 2014/35/UE	[European Directives] Low Voltage Directive

I.M.Q. CB TEST CERTIFICATE

Istituto Italiano del Marchio di Qualità

CMIM

MARQUAGE MAROC

EAC

Eurasian Conformity

UE

Declaration of conformity

* Product image may be indicative
