BE-R SERIES

WALL BOX CABLE+SOCKET T2

Type 2 3P+N+E 16A 400V~ 11kW 16A 400V 3P+N+E IP55 IK11 Type 2 5m OCPP 1.6 JSON 1x11kW (16A)

Cod. 205.R36-T5C

Commercial Series

BE-R Series

Synthetical description

WALL BOX CABLE+SOCKET T2

Material

ENGINEERING PLASTIC

Cable length

Cable section

5G2,5+1x0,5mm²

Rated current

16A

Rated voltage

400V

Working frequency

50/60Hz

Poles

3P+N+E

Output

1x11kW (16A)

Protection degree IP

IP55

Working temperature

-30°C/+55°C with derating

GLOW WIRE

GW 650°C

Protection degree IK

IK11

Colour

ANTHRACITE

Saline solution

Resistant

UV protection

UV resistant

Mounting version

SURFACE MOUNTING

Dimensions

ø286x94mm

Product

EAN code

8001636176772

INTRASTAT code

8537109899

Net weight

0 KG

Minimum Quantity

Packaging

Packaging Carton

EAN code

Quantity

Depth

0.0

Width

0.0

Height

0.0

Volume

0.0

DIRECTIVE EMC 2014/30/UE	[European Directives] Electromagnetic Compatibility Directive
IEC 61439-7 (2018)	[International Standard] Low-voltage switchgear and controlgear assemblies - Part 7: Assemblies for specific applications such as marinas, camping sites, market squares, electric vehicle charging stations
EN IEC 61851-1 (2019)	[European Standard] Electric vehicle conductive charging system - Part 1: General requirements
DIRECTIVE LOW VOLTAGE 2014/35/UE	[European Directives] Low Voltage Directive

Version

BUSINESS

EV standard

Type 2 3P+N+E 16A 400V~ 11kW

With integrated cable

Type 2

HMI (Human-Machine Interfaces)

APP

User authentication

RFID authentication
APP authentication

Connectivity

WiFi

Communication protocol

OCPP 1.6 JSON

EV functions

charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
working in mode stand-alone free or personal
identification of authorized user
power contactor aperture monitoring
POWER MANAGEMENT function embedded

EV equipment

1 relay 4P 40A 12Vdc
1 DC Leakage detector
1 reader RFID 13,56MHz
1 terminal strip 5x16mm²
1 control card with Wi-Fi connection 2,4GHz
1 power meter 3P+N
1 cavo 5G2,5+1x0,5mm² 5m
1 RGB led indicator

EV excluded

upstream protections (by the installer):
1 shunt trip release 12Vdc
1 circuit breaker 3P+N ≥ C16 / 30mA ist. A

UKCA marking

UK Conformity Assessed

UE

Declaration of conformity

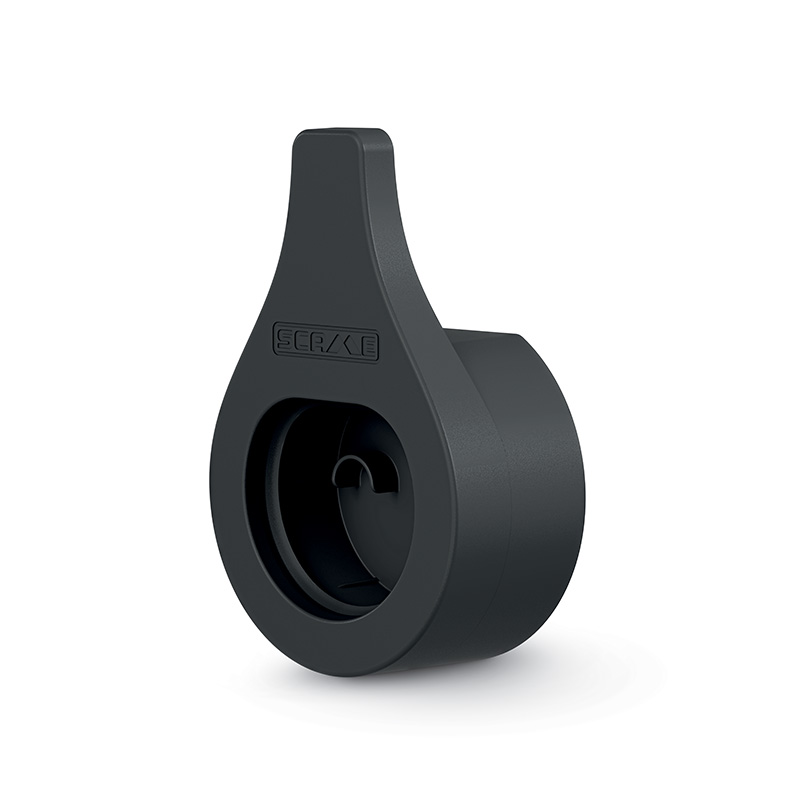

* Product image may be indicative
