COMMAND SERIES

CHANGE OVER SWITCH

16A 3P+N C1 BOX (B)

Cod. 590.YA165B-C

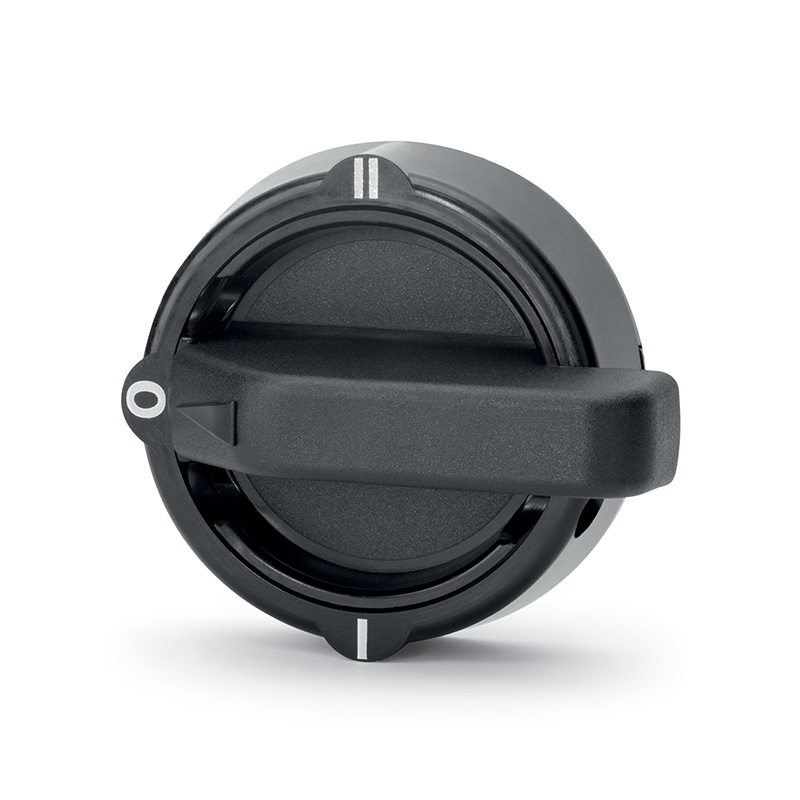

The CHANGE OVER SWITCH from the COMMAND Series is engineered for industrial settings demanding high reliability. This BOX (B) model is designed for base mounting and features a switch size of C1. It supports a rated current of 16A and includes 3 poles plus a neutral (3P+N). The switch operates with a current (Ie) in AC23A at 415V of 16A. Constructed as an open type, it is equipped with a direct handle that is padlockable in the OFF position, accommodating one padlock. Additionally, it features a late break and early make neutral pole for enhanced operational safety.

Commercial Series

COMMAND Series

Synthetical description

CHANGE OVER SWITCH

Construction type

Open type

Mounting version

Material

THERMOPLASTIC

Installation temperature

-25°C/+60°C

Type

BOX (B)

Rated current

16A

Poles

3P+N

Switch size

Rated voltage

690V

Rated insulation voltage (Ui)

690VAC

Rated impulse voltage (Uimp)

8kV

Thermal current (Ithe)

20A

Current (Ie) in AC21A (415V)

20A

Current (Ie) in AC21A (500V)

20A

Current (Ie) in AC21A (690V)

20A

Current (Ie) in AC22A (415V)

16A

Current (Ie) in AC22A (500V)

16A

Current (Ie) in AC22A (690V)

16A

Current (Ie) in AC23A (415V)

16A

Current (Ie) in AC23A (500V)

16A

Current (Ie) in AC23A (690V)

16A

Power AC23A (415V)

7.5kW

Short-time current

1,1kA Icw(1s)

Conditional short circuit cur.

50kAeff

Associate fuse - type gG

16A

Terminals - Flexible wires

2.5-16mm²

Terminals - Rigid wires

2.5-16mm²

Catalogue notes

Equipped with direct handle
With late break and early make neutral pole
BOX (B) = Base mounting
Handle padlockable in OFF position (1 padlock)

Product

EAN code

8001636301648

INTRASTAT code

8536508000

Net weight

0.115 KG

Minimum Quantity

Packaging

Packaging Box

Quantity

EAN code

8001636748375

Depth

268.0 MM

Width

198.0 MM

Height

111.0 MM

Volume

5890.104 CCM

EN IEC 60947-1 (2021)	[European Standard] Low-voltage switchgear and controlgear - Part 1: General rules
EN IEC 60947-3 (2021)	[European Standard] Low-voltage switchgear and controlgear - Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units
DIRECTIVE LOW VOLTAGE 2014/35/UE	[European Directives] Low Voltage Directive

CMIM

MARQUAGE MAROC

EAC

Eurasian Conformity

UE

Declaration of conformity
